Air & Water Temperature Sensors

Air & Water Temperature Sensors

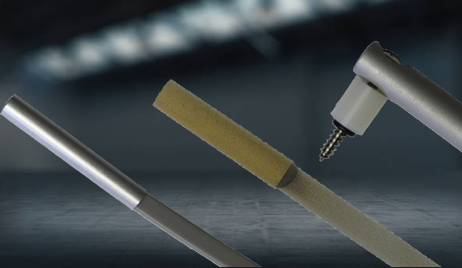

Micro-Air manufactures all of the temperature sensors used for its cabin controls and chiller controls using high-quality Honeywell® Fenwal thermistors. The sensors are designed for optimal operation, depending on their application.

Features:

Air Sensors:
This sensor is constructed using an aluminum housing with a thermal-epoxy-encapsulated thermistor, 6-conductor, flat shielded cable, and an RJ-12 modular plug.

Water Sensors:
This sensor is constructed using a brass housing with a thermal-epoxy-encapsulated thermistor, 6-conductor, flat shielded cable, and an RJ-12 modular plug. A new, glass-bead thermistor is now also available and recommended for all water applications.

Outside Air Sensors:
This sensor is constructed using a bolt-through, aluminum housing with a thermal-epoxy-encapsulated thermistor, 6-conductor, flat shielded cable, and an RJ-12 modular plug.

Model Number(s):
-- SUB-032-Xyy (aluminum air sensor)
-- SUB-056-Xyy (brass water sensor)
-- SUB-056-Xyy GLASS (brass water w/glass-bead snsr)
-- SUB-022-Xyy (aluminum outside air sensor)

yy=length in ft.
Standard lengths (ft): 1.5,2,7,10,15,20,25,30,50, & 75
