FX-2 Chiller OLED Control Display

FX-2 Chiller OLED Joystick Control Display

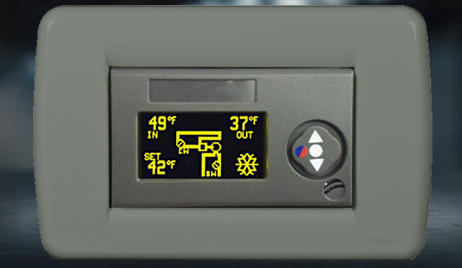

The FX-2 Chiller OLED Joystick Control Display connects to the FX-2 Control Board (ASY-360) and allows for the control of a single-stage chiller system. The FX-2 Control Family was designed to support either DX/CW cabin control or chiller system control, all with a common control board. When operating as a chiller control, the FX-2 provides all of the required features for safe and simple operation.

The FX-2 Chiller OLED Joystick Control Display can be mounted in either the Vimar® Idea or Gewiss® Playbus frames. Hundreds of decorative bezels are available for either line.

Features:

-- Universal 115/230 VAC 50/60 Hz power supply
-- Directly drives compressor, loop water pump, and reversing valve AC outputs (and can also drive contactors)
-- Sea water pump output is pilot duty and drives a contactor or pump relay
-- High and low refrigerant pressure switch inputs
-- 8-pin RJ-45 Display Interface
-- Flow switch input
-- Supply and return water temperature sensor inputs
-- Control display allows for all programming and control
-- Supports FX-2 Control Board w/ EasyStart daughterboard option

Model Number(s):
-- ASY-378-X03 CHILL
