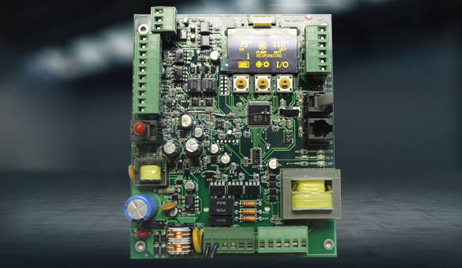

Hydromatic II Control Board

Hydromatic 2 Control Board




The Hydromatic II is a new and advanced control system for multi-stage marine chillers. It employs the latest technology with CAN Bus networking capabilities (designed to allow microcontrollers and devices to communicate with each other in applications without a host computer), and offers advanced control with many sensor monitoring options. It can also be configured for use with a color touch screen panel PC, built into a custom control electrical panel with power distribution wiring, circuit breakers, contactors, etc.

(Please contact Micro-Air at 609-259-2636 or contact us online for more information on custom chiller control panels.)

Features:

-- Modular system for controlling one to eight compressors
-- Universal 115/230 VAC 50/60 Hz power supply
-- Integrated OLED display with 3-button interface
-- Factory reversible display permits access from outside the electric box
-- Auxiliary voltage input for all control outputs
-- Optional stage current sensing and over current shutdown
-- Optional high/low refrigerant pressure transducer inputs
-- VFD (variable frequency drive) dry contact output
-- MODBUS input for VFD monitoring
-- Electric/Reverse-Cycle heating based upon sea water temperature
-- Automatically equalizes compressor run times in multistage systems
-- Individual loop water flow switch inputs for each compressor
-- Simple CAN Bus two-wire connection between stage control boards and the pump control board
-- Compatible with AirNet 5 (for LAN or internet access)

Model Number(s):
-- AASY-250-X0E
