Pump Relays

Pump Relays - Boards

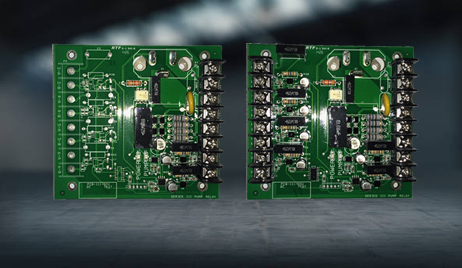

These Pump Relay (PRP) boards allows control of a common seawater pump between multiple cabin or chiller controls. It can also be used to control a common chilled-water loop pump between multiple chiller controls. Separate, fully-isolated pump trigger inputs accept either 115VAC/60Hz or 230VAC/50-60Hz. The pump power source and pump output is also isolated and can be either 115VAC or 230VAC/50-60Hz.

Two models of PRP are available, one that can support up to 2 trigger inputs, and one that can support up to 6. PRPs are also available enclosed in a metal electric box.

Features:

Model Number(s):
-- SUB-111-X1V (2-station board only)
-- SUB-111-X2V (6-station board only)
-- ASY-110-X01 (2-station board in metal elec box)
-- ASY-111-X01 (6-station board in metal elec box)
